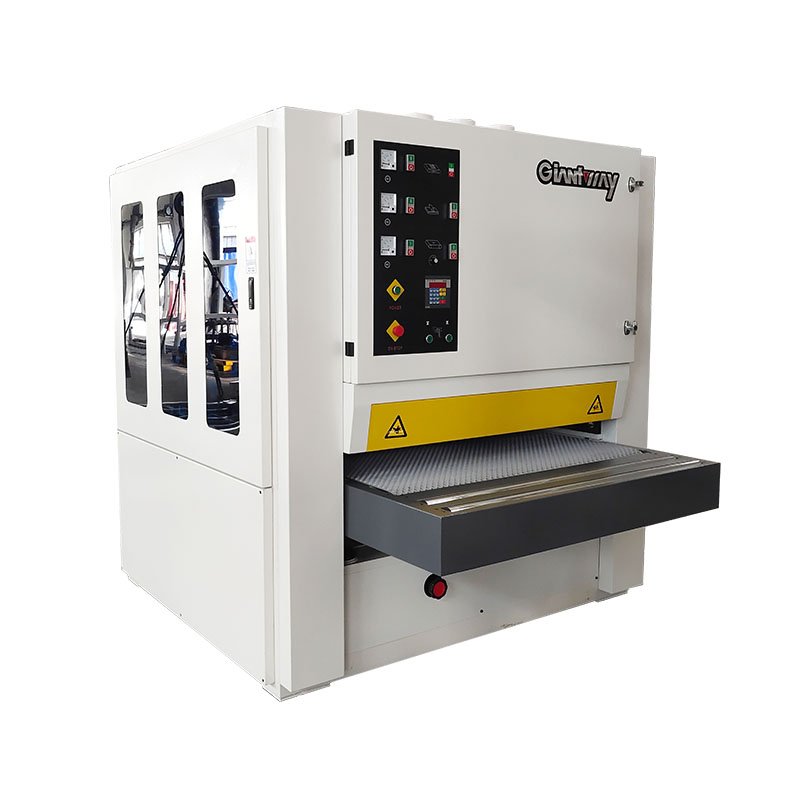

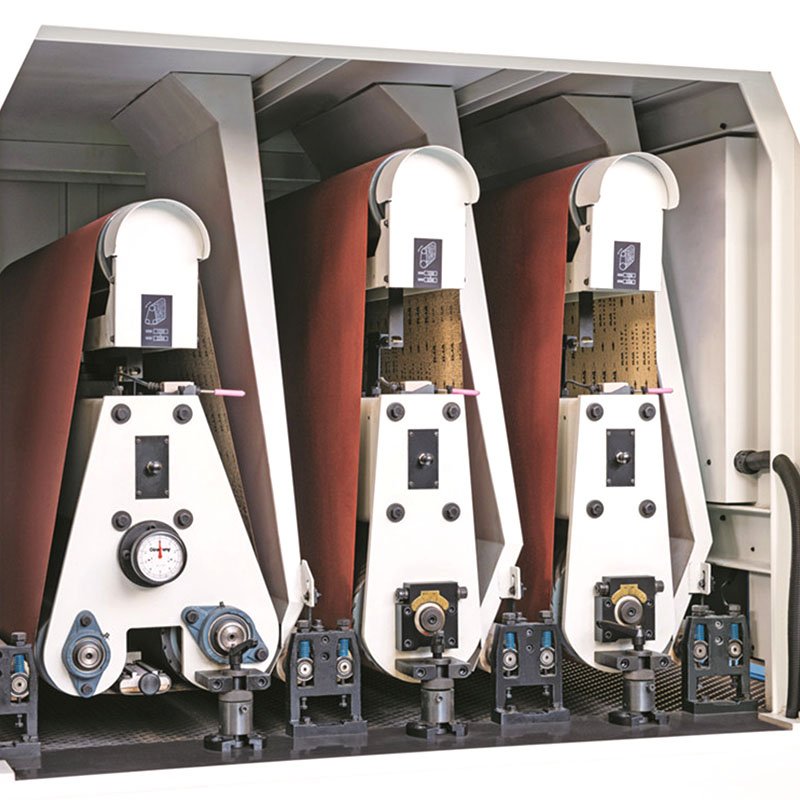

This wide belt sander SGJ1300R-R-RPA has 25 years production experience, it is our most mature product. We install three working units on this machine. The first working unit is a steel roller, diameter 240mm; the second working unit is a rubber roller, diameter 240mm; the third working unit is a combination of roller and pad. This configuration is good for calibrating and fine sanding.
We applied all our experience in sanding technology to make this type machine. It’s main advantage is high cost performance ( good quality and affordable price), this machine is easy to adjust and maintain, our purpose is save you time and cost.
MODEL SPC ITEM | SGJ1300R-R-RPA HEAVY DUTY TYPE | SGJ1300R-R-RPA STANDARD TYPE |
First roller diameter | 240mm | 240mm |
Second roller diameter | 240mm | 240mm |
Third roller diameter | 210mm | 210mm |
Working width | 40-1300mm | 40-1300mm |
Working thickness | 2.5-150mm | 2.5-150mm |
Feeding speed | 0-19m/min | 0-19m/min |
First belt speed | 24m/s | 24m/s |
Second belt speed | 24m/s | 24m/s |
Third belt speed | 18m/s | 18m/s |
Sanding belt size | 1330*2200mm | 1330*2200mm |
Total power | 93.62kw | 63.62kw |
First belt motor | 37kw | 22kw |
Second belt motor | 30kw | 22kw |
Third belt motor | 22kw | 15kw |
Motors position | OUTSIDE | INSIDE |
Feeding motor | 4kw（inveter） | 4kw（inveter） |
Lift & decline motor | 0.37kw | 0.37kw |
Brush motor | 0.25kw | 0.25kw |
Working pressure | 0.4-0.8Mpa | 0.4-0.8Mpa |
Compressed air consumption | 1CBM/min | 1CBM/min |
Overall dimension | 2700*2650*2120mm | 2700*2000*2120mm |
Weight | 5050kgs | 4900kgs |
