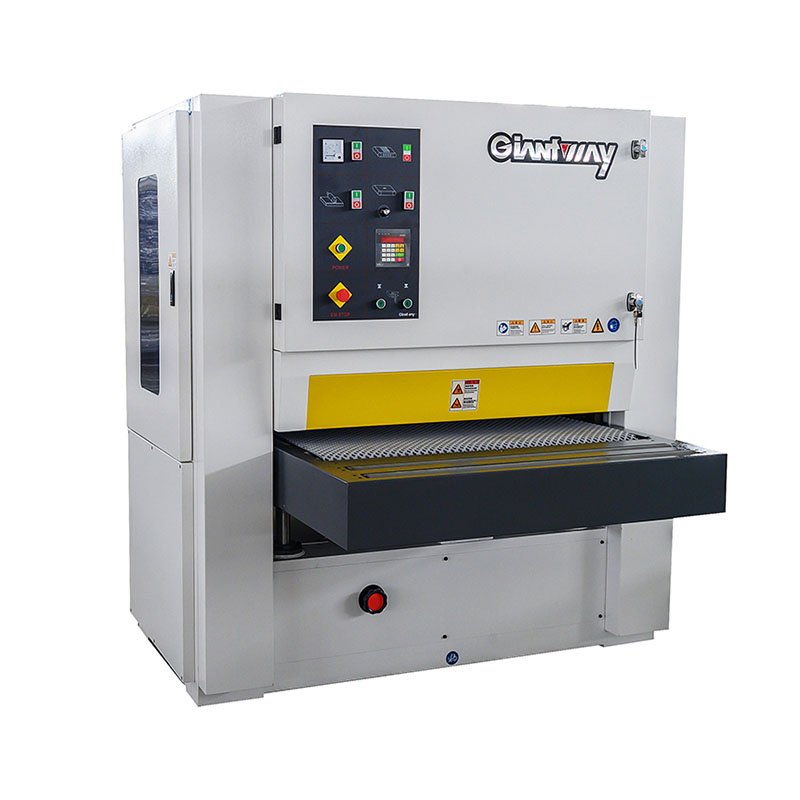

This wide belt sander SGJ1100RPA has 25 years production experience, it is our most mature product. We install one working units on this machine. The first working unit is a rubber roller, diameter 210mm. This machine is designed for calibrating and fine sanding on solid wood, glued panels, mdf, plywood and other wooden furniture parts.
We applied all our experience in sanding technology to make this type machine. It’s main advantage is high cost performance ( good quality and affordable price), this machine is easy to adjust and maintain, our purpose is save you time and cost.
MODEL SPC ITEM | STANDARD TYPE |
Calibrating roller diameter | 210mm |
Working width | 40-1100mm |
Working thickness | 2.5-150mm |
Feeding speed | 0-19m/min |
Abrasive belt speed | 18m/s |
Sanding belt size | 1130*2200mm |
Total power | 22.12kw |
First belt motor | 18.5kw |
Feeding motor | 3kw (inverter) |
Lift & decline motor | 0.37kw |
Brush motor | 0.25kw |
Working pressure | 0.4-0.8Mpa |
Compressed air consumption | 1CBM/min |
Overall dimension | 1950*1850*1980mm |
Weight | 2100kgs |
