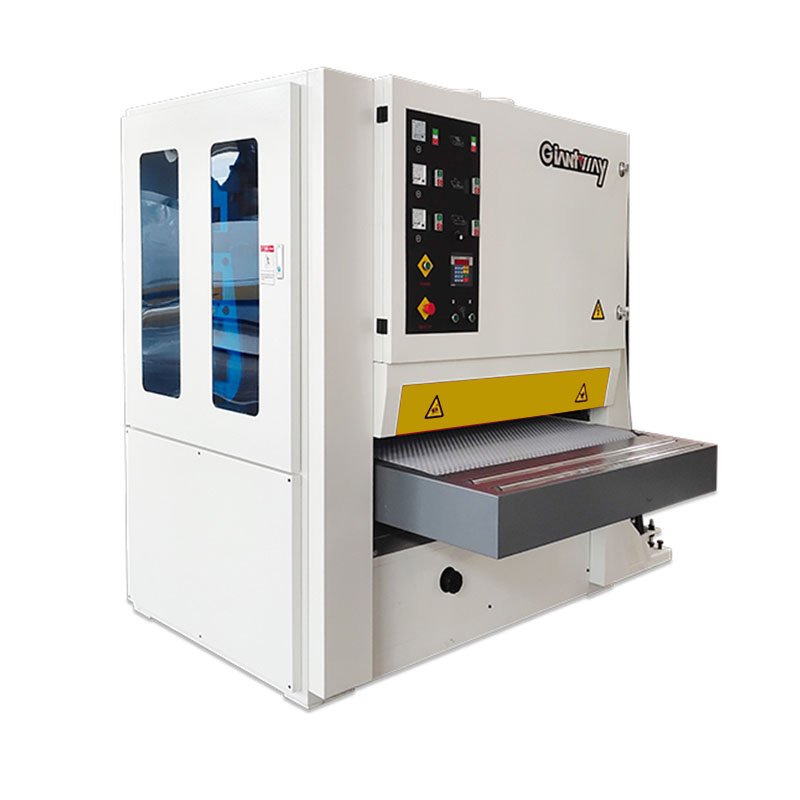

This veneer sander SGJ1000R-RPA is our innovation on veneer board sanding, It is a necessary equipment for making advanced customization furniture, also is good options for door factories, cabinet factories, and other furniture factories. After the veneer sanding, the products would go to painting line directly.
Giantway wide belt veneer sander SGJ1000R-RPA/SGJ1300R-RPA is mainly designed for veneer board. Even the board with 0.2mm veneer layer, this machine can do the sanding job perfectly, no less sanding and no sand through. This sander is also wonderful equipment to remove glue joints or glue papers from the veneer board. This machine can do the job well due to our machine is with high precision configuration, and the sanding roller and pad have suitable hardness and RPM.
MODEL SPC ITEM | SGJ1000R-RPA VENEER |
Working width | 40-1000mm |
Working thickness | 2.5-150mm |
Feeding speed | 0-19m/min |
First belt speed | 14m/s |
Second belt speed | 11m/s |
Contact roller diameter | 240mm (55o) |
Calibrating roller diameter | 210mm (45o) |
Sanding belt size | 1030*2200mm |
Conveyor size | 1000*3700mm |
Total power | 29.62kw |
First belt motor | 15kw |
Second belt motor | 11kw |
Motors position | Inside |
Feeding motor | 3kw (inverter) |
Lift & decline motor | 0.37kw |
Brush motor | 0.25kw |
Working pressure | 0.4-0.8Mpa |
Compressed air consumption | 1 CBM/min |
Overall dimension | 2300*1700*2120mm |
Weight | 3200kgs |
