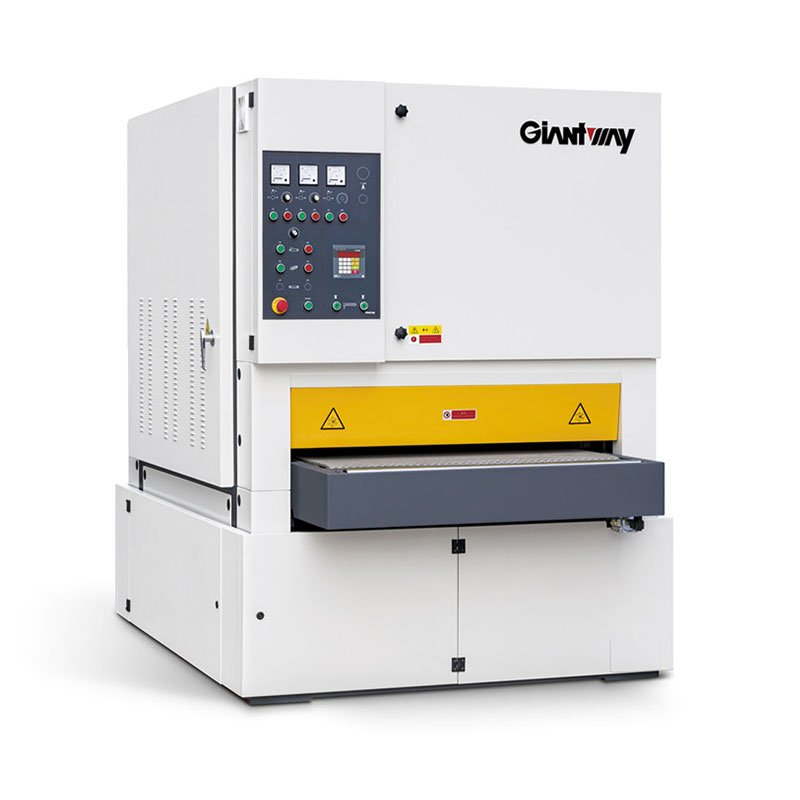

FSG650R-R-RPA wide belt sander is our fixed table (constant pass line ) top sander, usually used in line together with bottom sander. This machine is a necessary equipment for high productivity facotries, such as wood doors manufacturers, cabinets makers and so on.

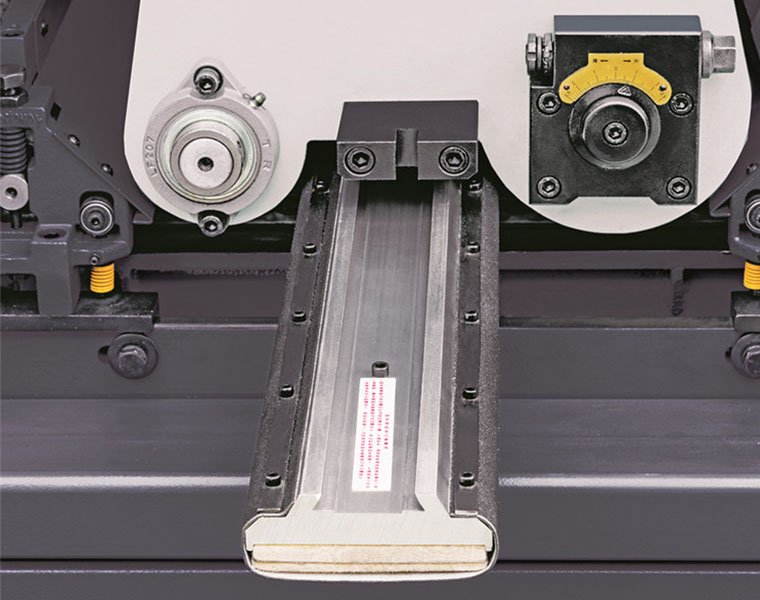

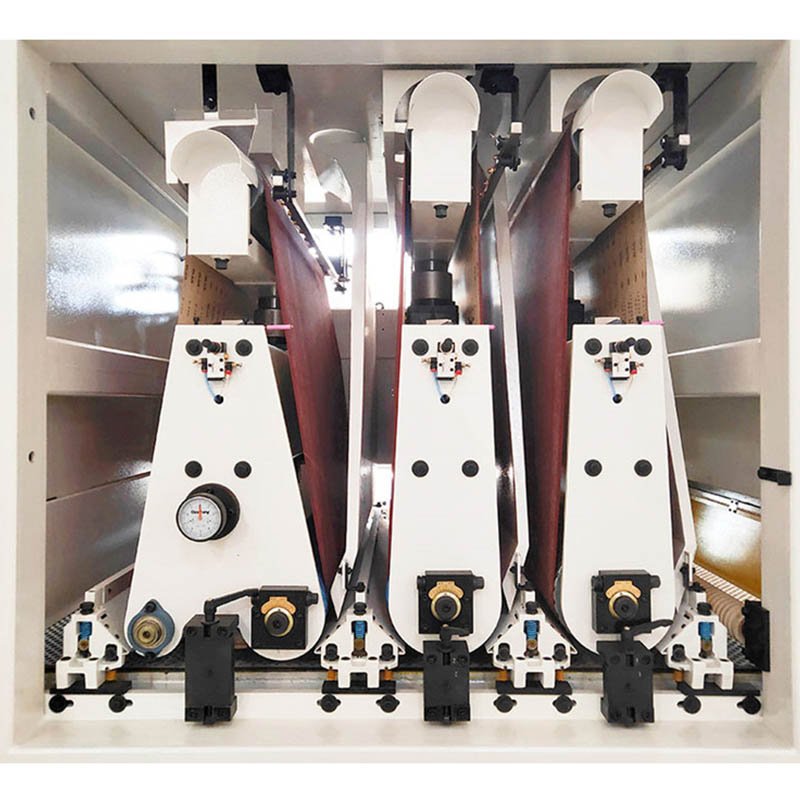

On this machine, the 1st working unit is a steel roller, the 2nd working unit is a rubber roller, the 3rd working unit is a rubber roller combined with a longitudinal pressure beam. This configuration is good for calibrating, also is well for fine sanding. The rubber roller hardness can be made according to customers' requirement.
FSG series sanding machines are Giantway company applied our years experience integrated european machine advantage to make. This series machines freaturing higher precision, longer life, energy-saving and more, are ideal equipment for sanding job.
MODEL SPC ITEM | FSG650R-R-RPA |
Working width | 40-650mm (25inch) |
Working thickness | 3-100mm |
Minimum working length | 460mm |
Feeding speed | 0-19m/min ( WITH INVERTER) |
First belt speed | 21.5m/s |
Second belt speed | 21.5m/s |
Third belt speed | 16m/s |
Sanding belt size | 680*2200mm |
Conveyor size | 660*5040mm |
Total power | 48.575KW |
First belt motor | 18.5kw (25hp) |
Second belt motor | 15kw (20hp) |
Third belt motor | 11kw(15hp) |
Lift & decline motor | 0.75kw-6P |
Brush motor | 0.25kw |

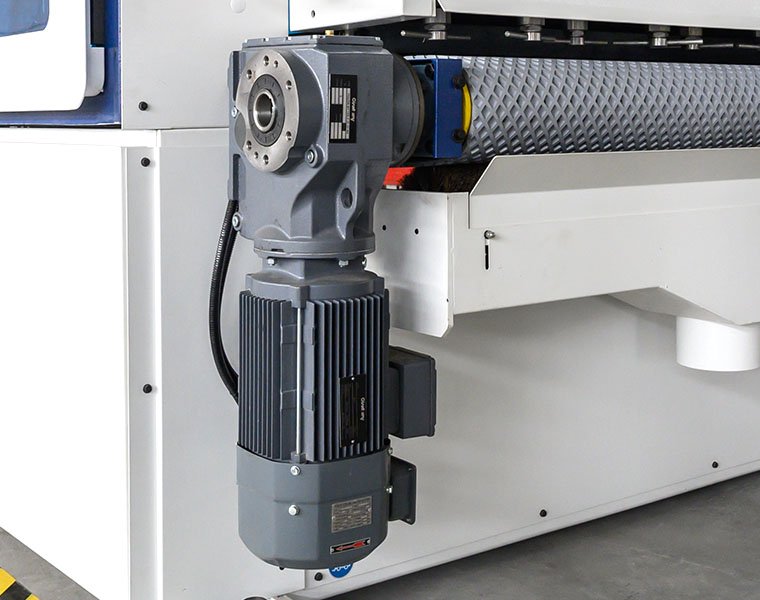

Feeding motor | 3kw (INVERTER) |
Working pressure | 0.4-0.8Mpa |
Compressed air consumption | 1.5CBM/min |
Overall dimension | 2803*1240*2022mm |
Weight | 4700kgs |
