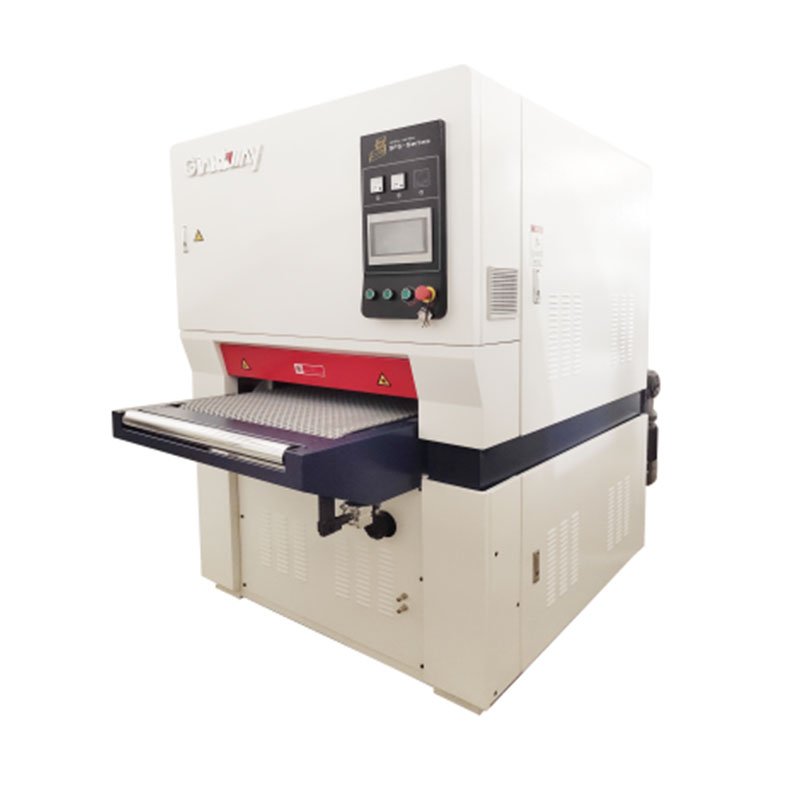

This lacquer sander is special designed for sealer sanding and base lacquer sanding. The machine is also with fixed conveyor table and moverable working units, that is suitable to be put in production line.

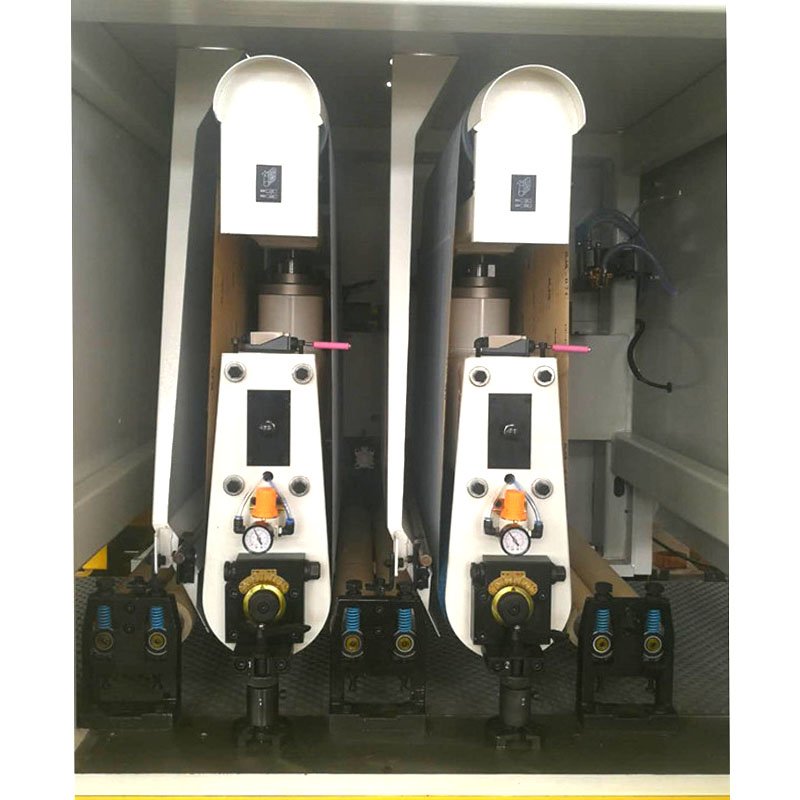

This first working unit on this machine is a rubber roller, roller diameter is 190mm,hardness is shore 26; the 2nd working unit is a soft rubber roller , roller hardness is shore 22, roller diameter is 190mm. Both working heads equip 730*1900mm abrasive belt.
The lifting system on this machine adopts ball screw support bolts to ensure the smooth and precise lifting. Due to the scientific design, no sanding through or less sanding on the working pieces.
MODEL SPC ITEM | SFG700R-RA |
Working width | 40-700mm |
Working thickness | 2.5-140mm |
Working table height | 900mm |
Minimum working length | 290mm |
First roller diameter (rubber) | 190mm |
Second roller diameter (rubber) | 190mm |
Abrasive belt grit | 320#, 400# |
Feeding speed | 0-19m/min |
First belt speed | 7.1m/s |
Second belt speed | 7.1m/s |
Sanding belt size | 730*1900mm |
Feeding belt size | 705*3930mm |
Total power | 17.43kw |
First belt motor | 7.5kw-6P |
Second belt motor | 7.5kw-6P |
Feeding motor | 1.5 kw (with inverter) |
Lift & decline motor | 0.75kw - 4P |
Brush motor | 0.18kw-6P |
Working pressure | 0.4-0.8Mpa |
Compressed air consumption | 1 CBM/min |
Collecting system air speed | 30m/s |
Outlets diameter | 100mm x 5pcs |
Overall dimension | 2130*1270*1900mm |
Weight | About 2280kgs |
