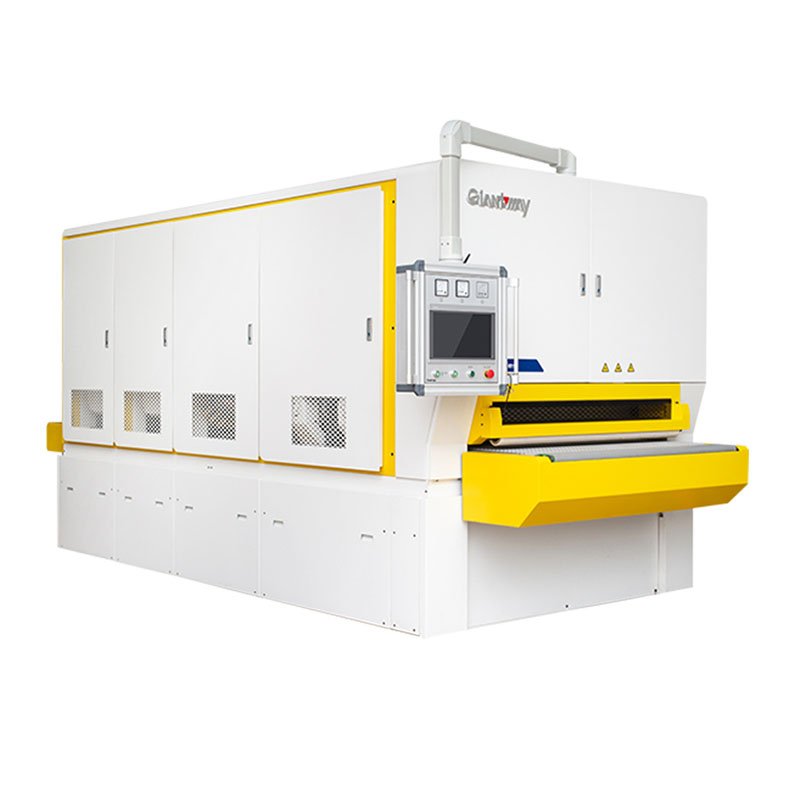

This combination sander GSM1350R-RA+W+W is the latest innovation in sanding technology, featuring a combination of belt sanding and brush sanding. the combination makes this sander the ideal finishing solution for entry doors, cabinet doors, drawer fronts, sheet goods, shutters, face frames, furniture and much more. this sander is the ideal solution for all sanding applications, especially for doors & cabinets.

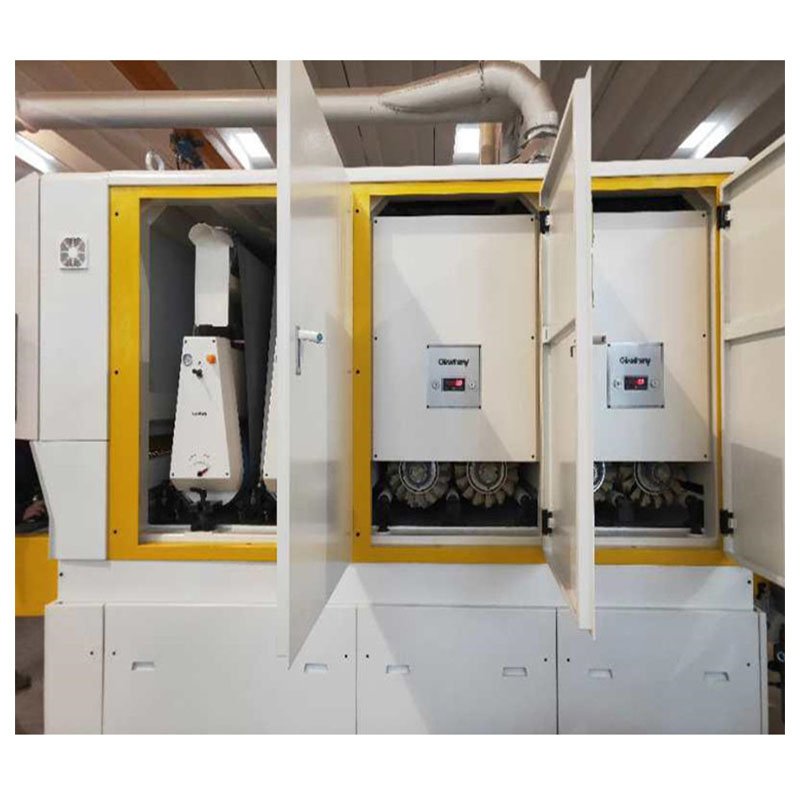

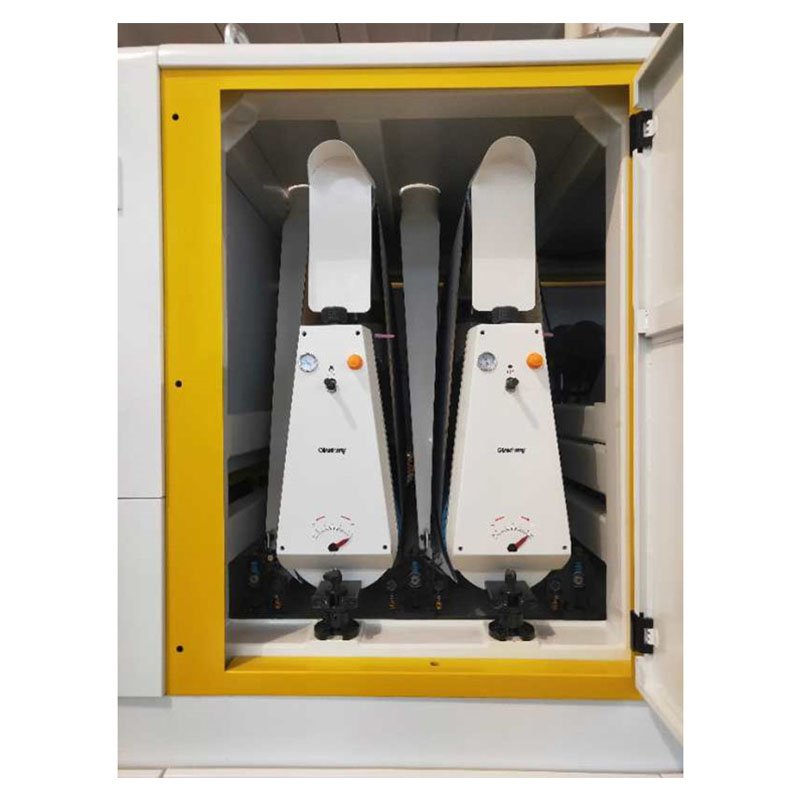

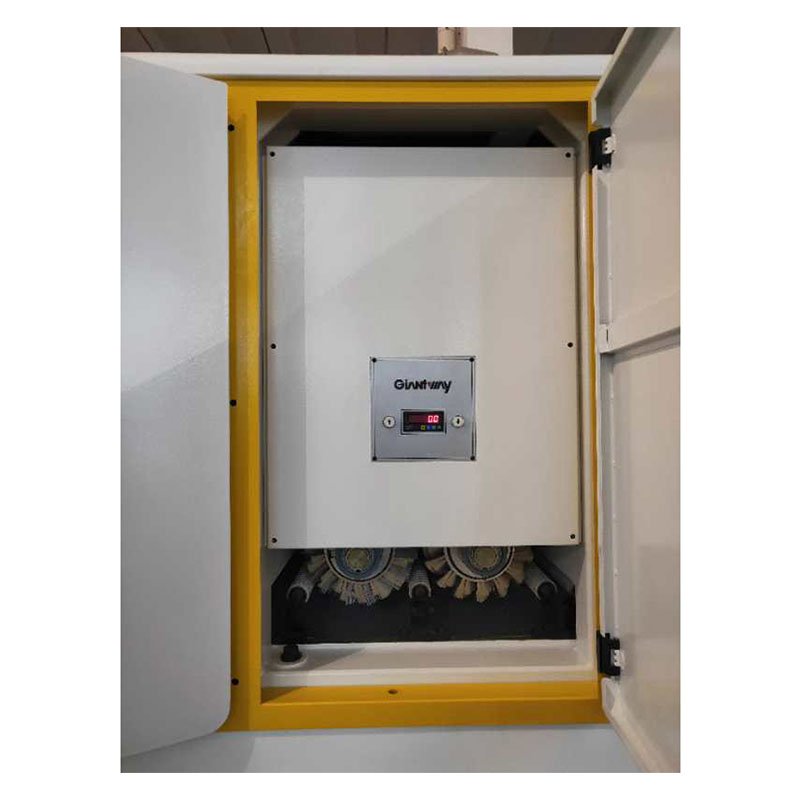

The first working unit and second working unit are belt sanding units, with two rubber rollers, diameter is 320mm. Behind them, are four longitudinal brush rollers, diameter is 320mm too. Our combination sander is with interchangeable module units, you can choose your favourite moduler working unit, and we assemble them according to your requirement.
MODEL SPC ITEM | GSM1350R-RA+W+W |
Working width | 40-1350mm |
Working thickness | 2.5-120mm |
Min working length | 330mm |
1st roller diameter and hardness (R) | 320mm / 26º |
2nd roller diameter and hardness ( RA) | 320mm / 22º |
Feeding speed | 0~19m/min (inverter) |
1st belt speed (R) | 0-12m/s (inverter) |
2nd belt speed (RA) | 0-12m/s (inverter) |
Longitudinal Sanding brush RPM (W) | Max550rpm (inverter) |
Longitudinal Sanding brush oscillate frequency (W) | 60 times / min |
Longitudinal Sanding brush diameter and qty | 320mm * 4pcs |
Longitudinal sanding brush abrasive grit | 400# (front two) 600# (rear two) |
Sanding belt size | 1380*2620mm |
Conveyor size | 1360*7680mm |
Total motor power | 49.84kw |
1st belt motor (R) | 15kw-6P |
2nd belt motor ( RA) | 15kw-6P |
Feeding motor | 4kw ( inverter ) |
Lift & decline motor | 1.1kw-4P |
Sanding brush motor (W) | 1.5kw * 4pcs |
Sanding brush oscillating motor ( W) | 0.37kw *2 pcs |
Cleaning Brush motor | 0.25kw-6P *2pcs |

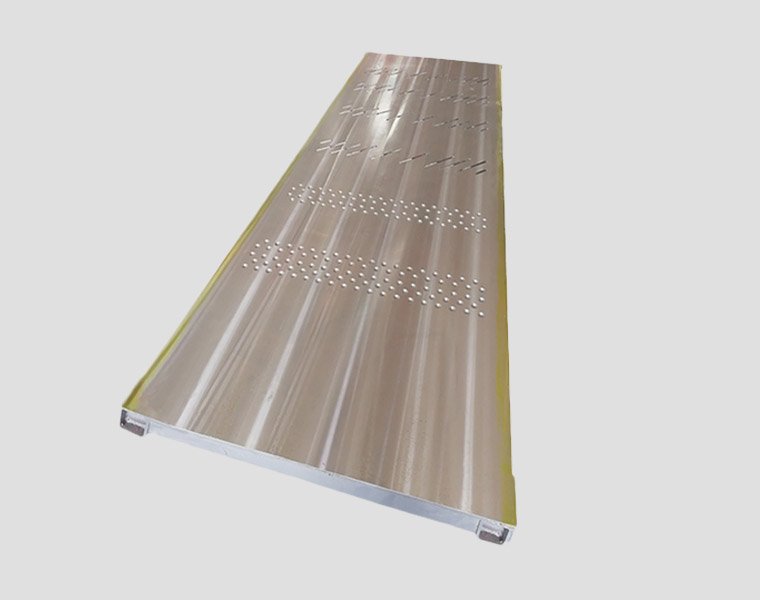

Vacuum table pump ( option device) | 7.5kw |
Working pressure | 0.4-0.8 Mpa |
Compressed air consumption | 1cbm/min |
Average speed of dust collector | 30m/s |
Dust outlets diameter and qty | 150mm*8 |
Vacuum pump outlet ( option device) | 200mm*1 |
Overall dimension | 4060*2040*2325mm |
Weight | 8540kgs |
