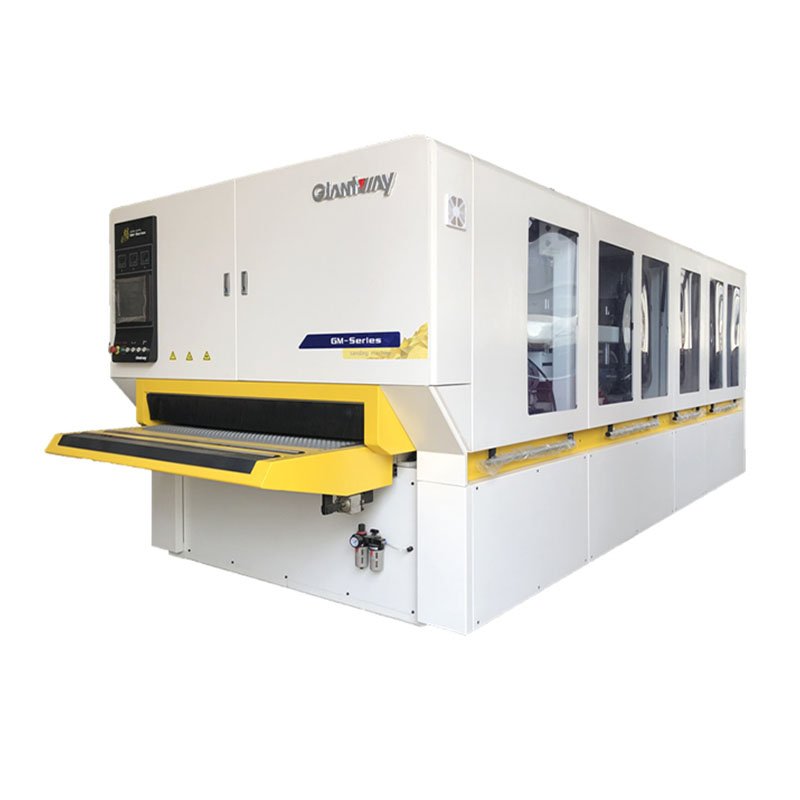

Brush sanding machine is the latest innovation in sanding technology, featuring cross brush rollers, sanding discs and longitudinal brush rollers. This configuration makes this sander a ideal finishing solution for doors, cabinets, shutters, face frames and other furnitures. Giantway brush sanding machine can do both white wood sanding or lacquer sanding by using different abrasive strips.
Giantway brush sanding machine is to help remove wood fibers from sanding the product, to help break sharp edges on product to prevent white lining, to help blend in or make uniform staining, to help blend in cross grain scratch, sanding imperfection & handling marks.

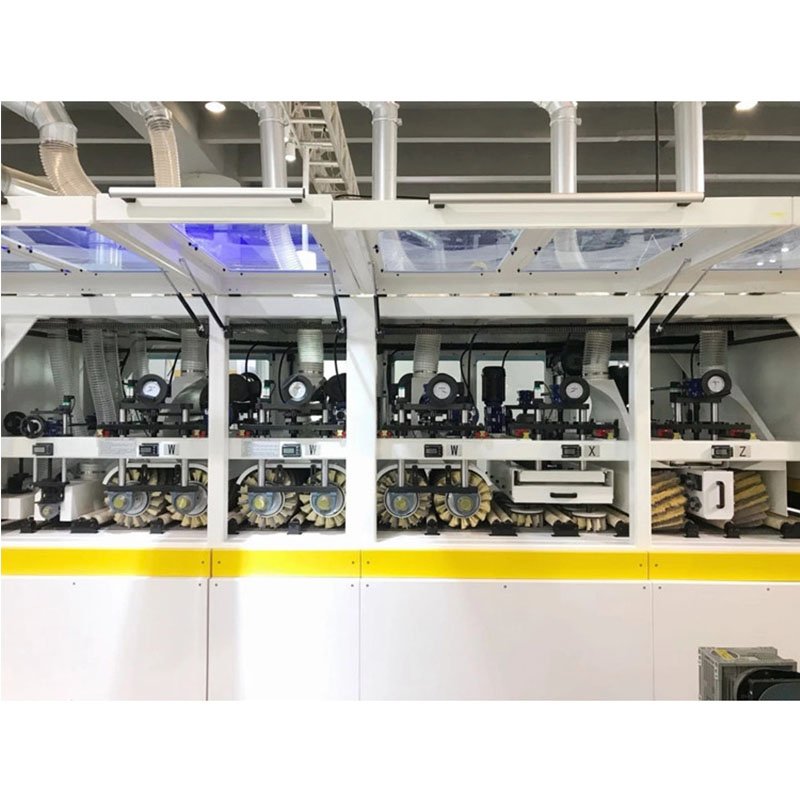

This machine YHS1100 Z+X+W+W+WB, Z is for cross brush rollers, X is for sanding discs, W is for longitudinal brush rollers. According to customers' requirement, we can make Z+X+W+W, Z+X+W, Z+W+W or W+ W+W and other different combination.
MODEL SPC ITEM | YHS1100Z+X+W+W+WB |
Working width | 100-1100mm |
Working thickness | 10-120mm |
Cross brush rollers speed | Max 550rpm (inverter) |
Sanding discs speed | Max 500rpm (inverter) |
Horizontal brush rollers speed | Max 550rpm (inverter) |
Cross brush rollers oscillating frequency | Max 30times/min(inverter) |
Discs station oscillating frequency | Max 30times/ min(inverter) |
Horizontal brush rollers oscillating frequency | 60times /min |
Feeding speed | 0-19m/min |
Conveyor size | 1110x10540mm |
Cross brush rollers diameter | 320mm (8pcs) |
Sanding discs diameter | 180mm (11pcs) |
Longitudinal brush rollers diameter | 320mm (6pcs) |
Total motor power | 29.05kw |
Feeding motor | 4kw(inverter) |
Cross brush rollers motor | 1.5kw |
Cross brush rollers oscillating motor | 0.75kw |
Longitudinal brush rollers motor | 1.5kw * 6 pcs |
Longitudinal roller oscillating motor | 0.37kw * 3pcs |
Discs motor | 1.5kw |
Discs qty | 11pcs |
Discs station oscillating motor | 0.75kw |
Working units rise and decline motor | 2.2kw-4P |
Press rollers rise and decline motor | 0.37kw |
Cleaning brush roller motor | 0.37kw |
Vacuum pump motor | 7.5kw |
Dust outlets | 150mm*5 + 100mm*4 |
Vacuum table exhaust outlet | 200mm x1pc |
Overall dimension | 5770*1900*2200mm |
Weight | 7600kgs |
